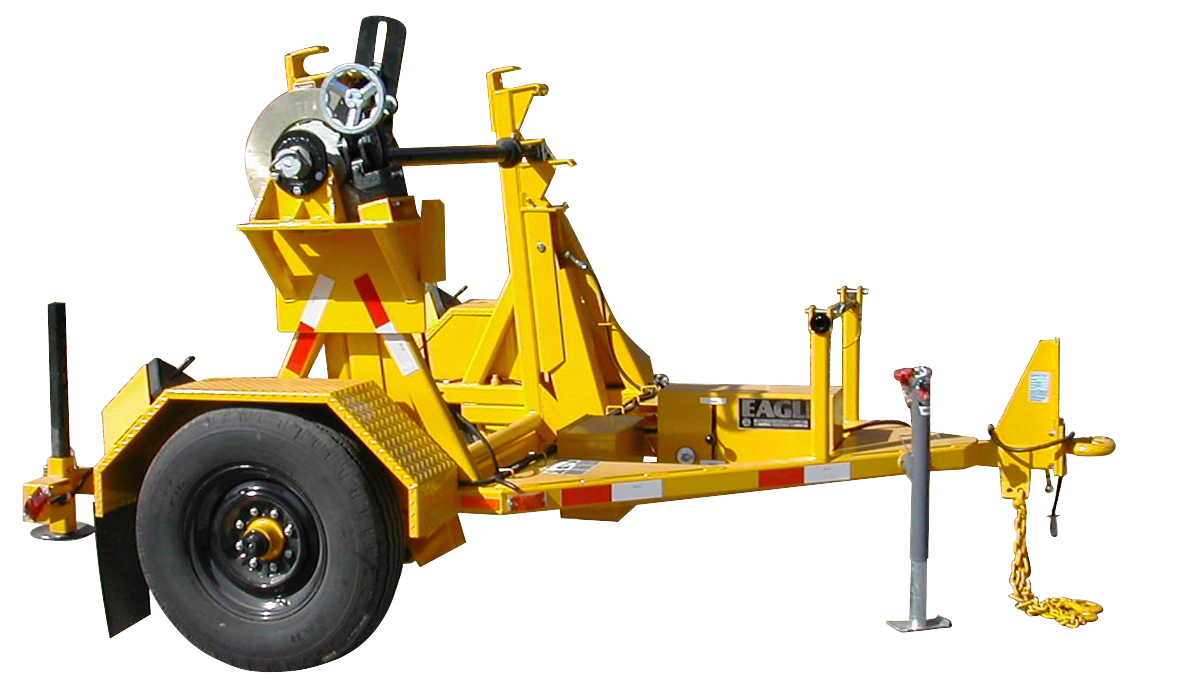

HL 5000 Cable Reel Trailer
Click Image to Enlarge
| Specifications |
| Payload |
5,800 lbs. |
| GVWR |
7,000 lbs. |
| Length Overall |
125" |
| Width Overall |
101" |
| Brakes |
Electric |
| Axle |
Single, 7,000 lbs. |
| Tires |
LT235/85 R 16 |
| Tongue Jack |
Crank-Type, 2,000 lbs. |
| Towing Eye |
Adjustable |
| Lighting |
Per FMVSS # 108 |
| Paint Finish |
Safety Yellow |
| Safety Chains |
Standard |
| Chock Block Holder & Chocks |
Standard |
| Solar Battery Box & Battery |
Standard |
| Options |
| Custom Paint Color |
| Tool Box |
| Tensioning Brake & Disc (9" or 16") |
| Additional Features |
| Max Reel Diameter |
96" |
| Max Reel Width |
60" |
| Rear Pinning Jack Legs |
Yes |
| Spindle Bar Size |
2 1/2" Diameter |
| Mud Flaps |
Standard |
| Fenders |
Standard |
| Double-Acting Hand Hydraulic Pump |
Yes |
